    T304 304 Cold Drawn Stainless Steel Flat Bar

    Ask Lasest Price
    Brand Name : HYX
    Model Number : T304
    Certification : CE ISO CNAS CQC SGS
    Price : 500-1500$/Ton
    Payment Terms : T/T, D/P, D/A, L/C, MoneyGram
    Delivery Time : 5-15 working days
    • Product Details
    • Company Profile

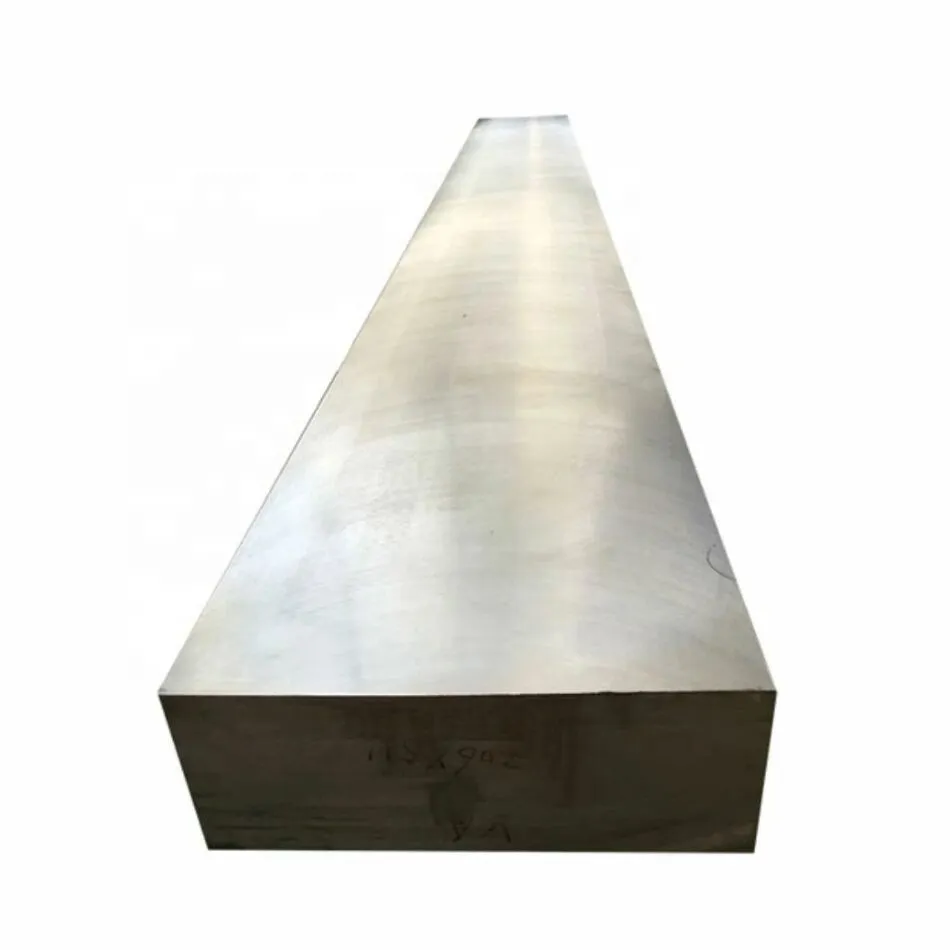

    T304 304 Cold Drawn Stainless Steel Flat Bar

    304 Stainless Steel Flat, is the most economical stainless flat shape that's ideal for all applications where strength and superior corrosion resistance is required. 304 Stainless Flat has a durable dull, grainy mill finish and is widely used for all types of fabrication projects that are exposed to the elements. Stainless Flats 1/2" thickness and under are sheared and edged, thicker sizes are a true bar. True bar is available on request for thinner sizes. Notice: 1/16" strip flats are sheared from sheet and may have some curvature or twist. Industrial grade stainless - NOT POLISHED.

    • Specifications: ASTM A276, QQS-763, T304/304L, non-polished mill finish, 1/8" to 1/2" thick is sheared & edged, sides may have taper; over 1/2" thick is True Bar (squared edge).
    • AKA: stainless strip, stainless bar, stainless rectangle
    • Applications: frame work, braces, supports, plates, marine, food, etc.
    • Workability: Easy to Weld, Moderate Cutting, Forming and Machining.
    • Mechanical Properties: Brinell = 170, Tensile = 85,000 +/-,
      Yield = 34,000 +/-, Nonmagnetic
    • How is it Measured? Thickness (A) X Width (B) X Length
    • Available Stock Sizes: 2ft, 4ft, 6ft, 12ft, or Cut to Size

    Stock lengths may vary +/- 1/4", 12ft bars are randoms 11 - 13ft
    Please call if you need specific lengths


    ASTMDINJISCSiMnPSCrMoVWCo
    M21.3343SKH510.78~0.880.20~0.450.15~0.400.030 Max0.030 Max3.75~4.504.50~5.501.75~2.205.50~6.75-
    M351.3243SKH550.82~0.950.2~0.450.15~0.40.030 Max0.030 Max3.8~4.54.75~5.251.75~2.155.5~6.54.6~5
    M421.3247SKH591.05~1.150.15~0.650.15~0.40.030 Max0.030 Max3.5~4.259~100.95~1.351.15~1.857.75~8.75
    M501.33250.78~0.880.20~0.600.15~0.450.030 max0.030 max3.75~4.503.90~4.750.80~1.25--
    T11.3355SKH20.62~0.80.2~0.400.1~0.400.030 Max0.030 Max3.75~4.5-0.9~1.317.25~18.75-
    T151.3202SKH101.30~1.45<0.45<0.40.030 Max0.031 Max3.8~4.50.7~1.03.5~4.011.5~12.54.5~5.0
    T41.3255SKH30.7~0.80.1~0.40.1~0.400.030 Max0.030 Max3.75~4.50.4~10.8~1.217.5~194.25~5.75

    Detailed Photos


    T1 Flat Bar Steel HS18-0-1flat Bar W18cr4V Steel Plate 1.3355 Carbon Steel Skh2 HSS Steel
    T1 Flat Bar Steel HS18-0-1flat Bar W18cr4V Steel Plate 1.3355 Carbon Steel Skh2 HSS Steel
    T1 Flat Bar Steel HS18-0-1flat Bar W18cr4V Steel Plate 1.3355 Carbon Steel Skh2 HSS Steel
    T1 Flat Bar Steel HS18-0-1flat Bar W18cr4V Steel Plate 1.3355 Carbon Steel Skh2 HSS Steel
    T1 Flat Bar Steel HS18-0-1flat Bar W18cr4V Steel Plate 1.3355 Carbon Steel Skh2 HSS Steel
    T1 Flat Bar Steel HS18-0-1flat Bar W18cr4V Steel Plate 1.3355 Carbon Steel Skh2 HSS Steel
