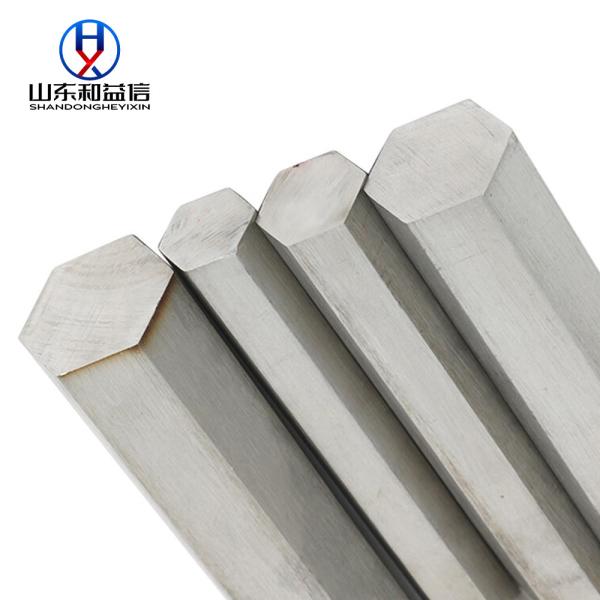

    317L Cold Finished Stainless Steel Hex Bar / Stainless Steel Hexagonal Bar

    Ask Lasest Price
    Brand Name : stainless steel bar
    Model Number : 317L
    Certification : CE ISO CNAS CQC
    Price : $499-599Ton
    Payment Terms : T/T, L/C
    Supply Ability : 50000ton/Year
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    317L Cold Finished Stainless Steel Hex Bar / Stainless Steel Hexagonal Bar

    317L Stainless Steel Bar Description

    317L is a low-carbon austenitic stainless steel containing molybdenum. More chromium, nickel and molybdenum are added to obtain better corrosion resistance and increase the resistance to sulfurous acid, acetic acid, formic acid, citric acid and tartaric acid. Resistance to chemical attack. Due to its low carbon content, 317L also provides resistance to sensitization during welding, as well as higher creep, rupture stress and high temperature tensile strength. It is non-magnetic in the annealed state, but may become slightly magnetic after welding.


    Product Parameters

    Product Name317L Stainless Steel Bar
    TypeSteel Bar
    Outer DiameterRound Bar4mm-500mm
    Hexagon Bar18mm-57mm (11/16″ to 2-3/4″)
    Square Bar18mm-47mm (11/16″ to 1-3/4″)
    Flat Steel1/2 "to 10", Thickness: 2mm-150mm, Can provide customized
    Length1-6 meters, Length can be customized
    StandardASTM, AISI, JIS, GB, DIN, EN, etc.
    SurfaceBlack, Bright Polished, Rough Turning, Mattness Surface Treatment, No. 4. BA, etc.
    Scope of Application

    Stainless steel bars are used in a variety of industries such as shipbuilding,

    Defense, Automotive, Textiles, Paper and pulp, Manufacturing, Cement,

    Heavy earthmoving equipment and construction, etc.


    Chemical Composition

    CSiMnCrNiSPMo
    ≤ 0.035≤ 0.75≤ 2.018.0~20.011.0~15.0≤ 0.03≤ 0.043.0~4.0

    Mechanical Properties

    Tensile Strength Kb (MPa)Yield Strength σ0.2 (MPa)Elongation D5 (%)Hardness
    ≥480≥177≥ 40≤ 187HB;≤ 90HRB;≤ 200HV

    Physical Performance

    Density(g/cm³)Modulus of Elasticity(Gpa)Coefficient of Thermal Expansion(10-6/°C)Coefficient of Thermal Conductivity(W/m*K)Resistivity(ΜΩ. cm)
    7.9919316.016.279
    No中国日本美国韩国德国印度澳大利亚中国台湾
    GBJISASTMUNSKSDINBISASCNS
    奥氏体不锈钢
    112Cr17Mn6Ni5NSUS201201S20100STS2011.437210Cr17Mn6Ni4N20201-2201
    212Cr18Mn9Ni5NSUS202202S20200STS2021.4373--202
    312Cr17Ni7SUS301301S20200STS3011.431910Cr17Ni7301301
    406Cr19Ni10SUS304304S30400STS3041.430107Cr18Ni9304304
    5022Cr19Ni10SUS304L304LS30403STS304L1.430602Cr18Ni11304L304L
    606Cr19Ni10NSUS304N1304NS30451STS304N11.4315-304N1304N1
    706Cr19Ni9NbNSUS304N2XM21S30452STS304N2--304N2304N2
    8022Cr19Ni10NSUS304LN304LNS30453STS304LN--304LN304LN
    910Cr18Ni12SUS305305S30500STS3051.4303-305305
    1006Cr23Ni13SUS309S309SS30908STS309S1.4833-309S309S
    1106Cr25Ni20SUS310S310SS31008STS310S1.4845-310S310S
    1206Cr17Ni12Mo2SUS316316S31600STS3161.440104Cr17Ni12Mo2316316
    1306Cr17Ni12Mo2TiSUS316Ti316TiS31635-1.457104Cr17Ni12MoTi20316Ti316Ti
    14022Cr17Ni12Mo2SUS316L316LS31603STS316L1.4404~02Cr17Ni12Mo2316L316L
    1506Cr17Ni12Mo2NSUS316N316NS31651STS316N--316N316N
    16022Cr17Ni13Mo2NSUS316LN316LNS31653STS316LN1.4429-316LN316LN
    1706Cr18Ni12Mo2Cu2SUS316J1--STS316J1--316J1316J1
    18022Cr18Ni14Mo2Cu2SUS316J1L--STS316J1L---316J1L
    1906Cr19Ni13Mo3SUS317317S31700STS317--317317
    20022Cr19Ni13Mo3SUS317L317LS31703STS317L1.4438-317L317L
    2106Cr18Ni11Ti SSUS321321S32100STS3211.454104Cr18Ni10Ti20321321
    2206Cr18Ni11NbSUS347347S34700STS3471.455004Cr18Ni10Nb40347347
    双相不锈钢
    1-SUS329J1329S32900STS329J11.4477-329J1-
    2022Cr23Ni5Mo3N-S32205F60-1.4462-22052205
    3022Cr25Ni7Mo4N-S32750F53-1.4410-25072507
    铁素体不锈钢
    106Crl3AlSUS405405S40500STS4051.400204Cr13405405
    2022Cr11TiSUH409409S40900STS4091.4512-409L409L
    3022Cr12SUS410L--STS410L--410L410L
    410Cr17SUS430430S43000STS4301.401605Cr17430430
    510Cr17MoSUS434434S43400STS4341.4113-434434
    6022Cr18NbTi--S43940-1.4509-439439
    7019Cr19Mo2NbTiSUS444444S44400STS4441.4521-444444
    马氏体不锈钢
    112Cr12SUS403403S40300STS403--403403
    212Cr13SUS410410S41000STS4101.400612Cr13410410
    320Cr13SUS420J1410S42000STS420J11.402120Cr13420420J1
    430Cr13SUS420J2--STS420J21.402830 Cr13420J2420J2
    568Cr17SUS440A440AS44002STS440A--440A440A
