    Color Coated Prepainted Galvanized Coil PPGI Prepainted Galvanized Steel Roll

    Ask Lasest Price
    Brand Name : HYX
    Model Number : Dx51d,Dx52D,Dx53D,Dx54D,S250gd,S350gd,S550gd
    Certification : CE ISO CNAS CQC
    Price : 500$-900$
    Payment Terms : T/T,L/C
    Supply Ability : 30000Tons/Month
    Delivery Time : 7-15days
    • Product Details
    • Company Profile

    Color Coated Prepainted Galvanized Coil PPGI Prepainted Galvanized Steel Roll

    Specification of our products

    Products NameGalvanized Steel Sheet / Galvalume Steel Sheet / Prepainted Galvanized Steel Sheet
    ThicknessGalvanized steel sheet 0.12 - 3.0mm Thickness
    Galvalume Steel Sheet 0.25 - 3.0mm Thickness
    Prepainted Galvanized Steel Sheet 0.12 - 1.2mm Thickness
    Width914mm,1000mm,1200mm,1219mm,1220mm,1250mm Or According To Customer's Requirement
    LengthCustom length as customer requirement
    Coil Weight2Ton - 8 Tons
    Coil Inner Diameter508mm or 610mm
    SurfaceGalvanized steel sheet: Regular spangle / non-spangle Zinc: Z30 - Z275
    Galvalume Steel Sheet : AZ40 - AZ180
    Prepainted Galvanized Steel Sheet:Painting Type:PE,HDP,SMP,PVDF
    StandardAISI, ASTM, BS, DIN, GB, JIS, AS ETC

    PRODUCTS CENTER

    PRODUCTS CENTER

    PREPAINTED GALVANIZED STEEL COIL
    Prepanited galvanized steel coil , also known as PPGI, color plate. Color coated steel plate is cold rolled steel plate and galvanized steel plate as the base plate, after surface pretreatment (degreasing, cleaning, chemical conversion treatment), in a continuous method of coating (roller coating method), after baking and cooling products. The coated steel plate has light weight, beautiful appearance and good anti-corrosion performance, and can be directly processed, it provides a new raw material for the construction industry, shipbuilding industry, vehicle manufacturing industry, household appliances industry, electrical industry and so on. It has played a good effect of replacing wood with steel, efficient construction, energy saving and pollution prevention.
    Color Coated Prepainted Galvanized Coil PPGI Prepainted Galvanized Steel Roll
    Color Coated Prepainted Galvanized Coil PPGI Prepainted Galvanized Steel Roll
    Color Coated Prepainted Galvanized Coil PPGI Prepainted Galvanized Steel Roll

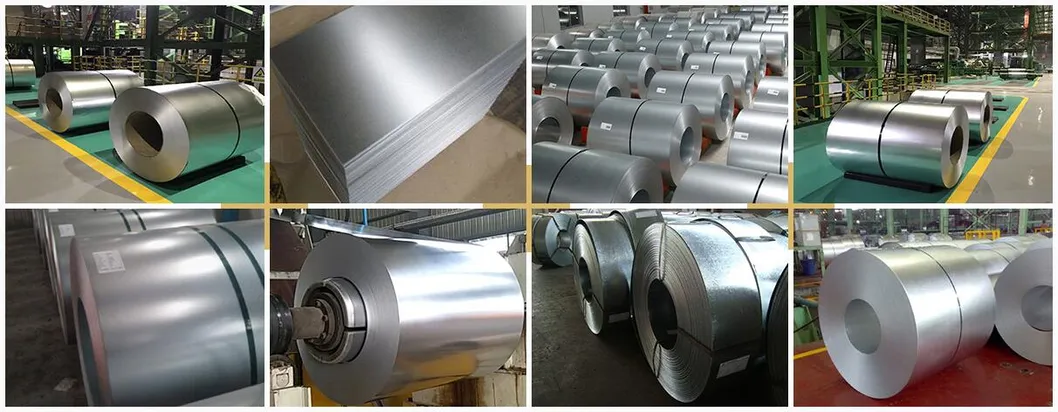

    GALVANIZED STEEL COIL
    Galvanized sheet: refers to the surface of the zinc coated steel plate. Galvanizing is an economical and effective method of rust prevention that is often used. About half of the world's zinc production is used in this process.
    Surface Request:

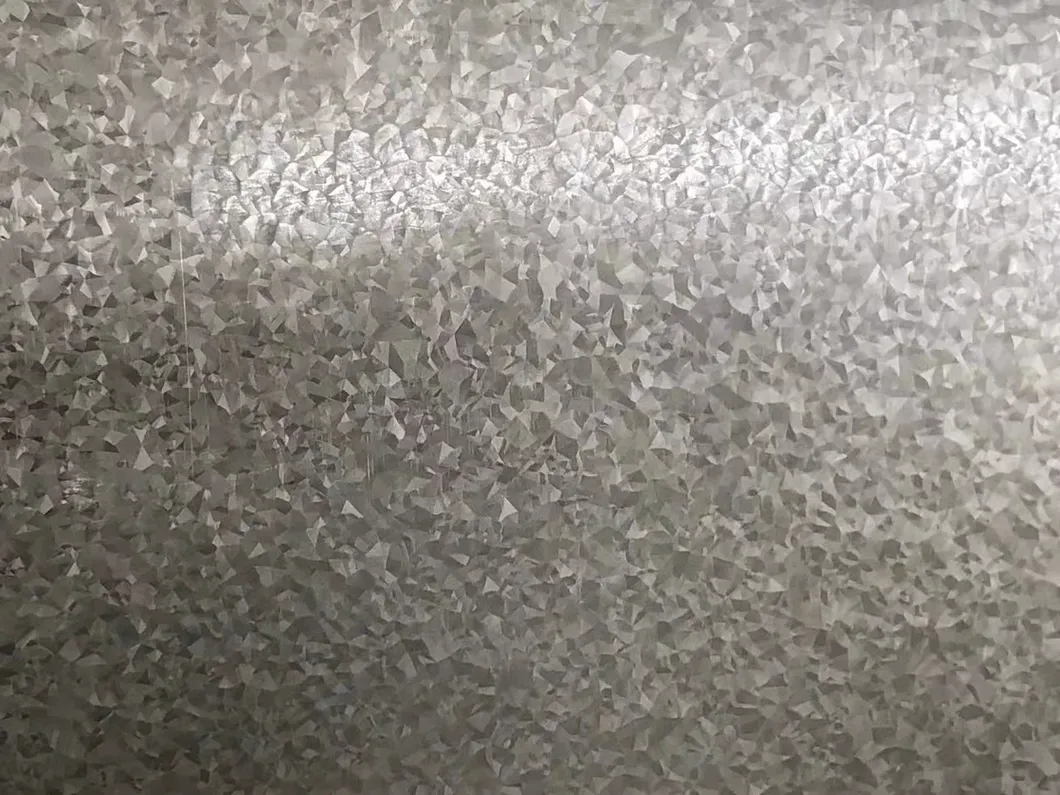

    (1) surface state: The surface state of galvanized sheet is different because of the different treatment methods in the coating and plating process, such as regular spangle , small spangle , big spangles.etc
    (2) Galvanized sheet should have a good appearance, shall not have harmful defects to the use of the product, such as no plating, holes, cracks and scum, more than thick plating, abrasion, chromic acid dirt, white rust, etc. Foreign standards are not very clear about the specific appearance defects. Some specific defects should be specified in the contract when ordering.

    Color Coated Prepainted Galvanized Coil PPGI Prepainted Galvanized Steel Roll
    GALVALUME STEEL COIL
    Galvalume steel sheet is a kind of alloy composed of aluminized zinc alloy structure, which is composed of 55% aluminum, 43% zinc and 2% silicon solidified at 600ºC. The whole structure is composed of aluminized iron, silicon and zinc, forming dense tetrad junction crystal.
    Good corrosion resistance, 3 times of pure galvanized sheet; The surface is decorated with beautiful zinc flowers, which can be used as a building exterior panel.
    The corrosion resistance of "aluminized zinc coil" is mainly due to aluminum, aluminum's protective function.
    Galvalume steel sheet has good heat resistance, can withstand the high temperature of more than 300 degrees Celsius, and aluminum plated steel plate high temperature oxidation resistance is very similar, often used in chimney tubes, ovens, illuminators and solar lampshades.
    Color Coated Prepainted Galvanized Coil PPGI Prepainted Galvanized Steel Roll
    Color Coated Prepainted Galvanized Coil PPGI Prepainted Galvanized Steel Roll

    FEATURE PRODUCTS

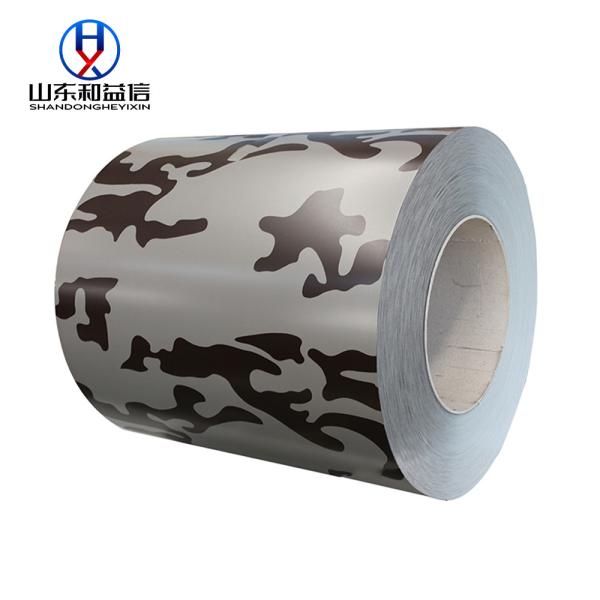

    Productspattern print prepainted steel sheet
    Introducepattern print prepainted steel sheet refers to a kind of color plate printed on galvanized plate, aluminized zinc plate and other substrates by means of transfer printing or film covering technology
    FeaturesThe main application wider marble grain, camouflage, wood grain printing color board, its color bright, variety
    SizeThickness: 0.17 - 1.5mm Width less than 1.5mm
    color and patternas clients request
    base materialgalvanized steel sheet / galvalume steel sheet
    coating thickness20-25um/5-10um
    coating typeabove 2 layer, bottom 1 layer
    Coil IDΦ510MM/610MM
    ApplicationWidely used in household appliances, furniture, doors and Windows, indoor and outdoor decoration and other fields
    Color Coated Prepainted Galvanized Coil PPGI Prepainted Galvanized Steel Roll
    Color Coated Prepainted Galvanized Coil PPGI Prepainted Galvanized Steel Roll
    Color Coated Prepainted Galvanized Coil PPGI Prepainted Galvanized Steel Roll
