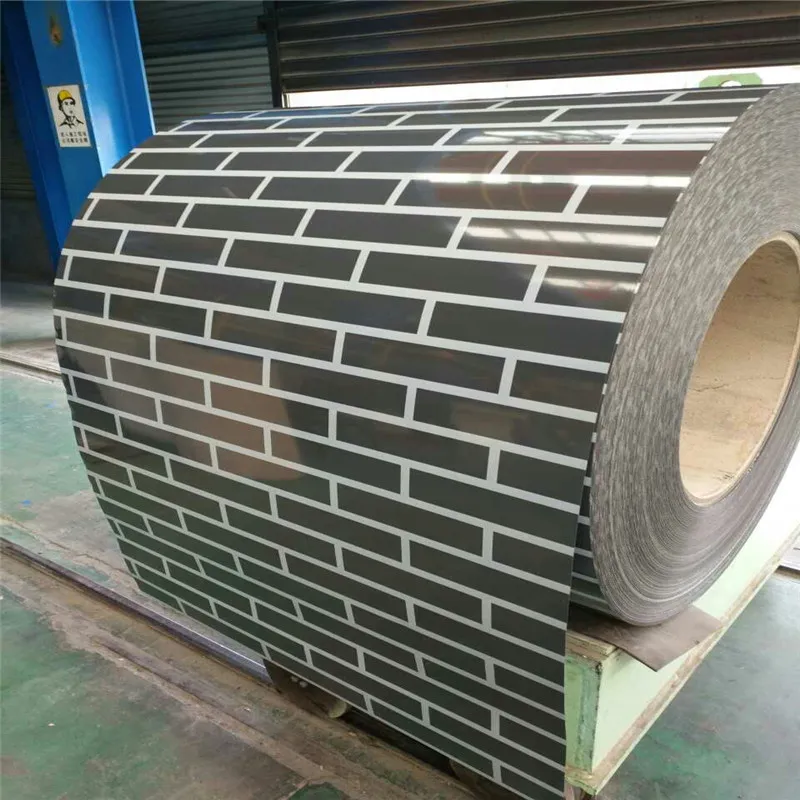

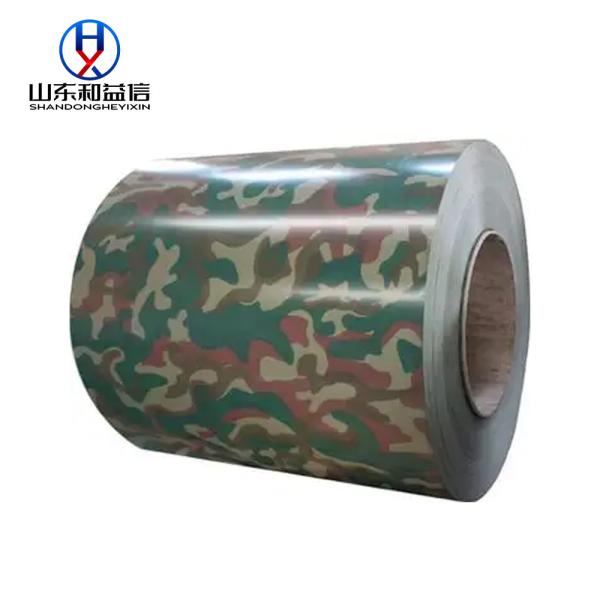

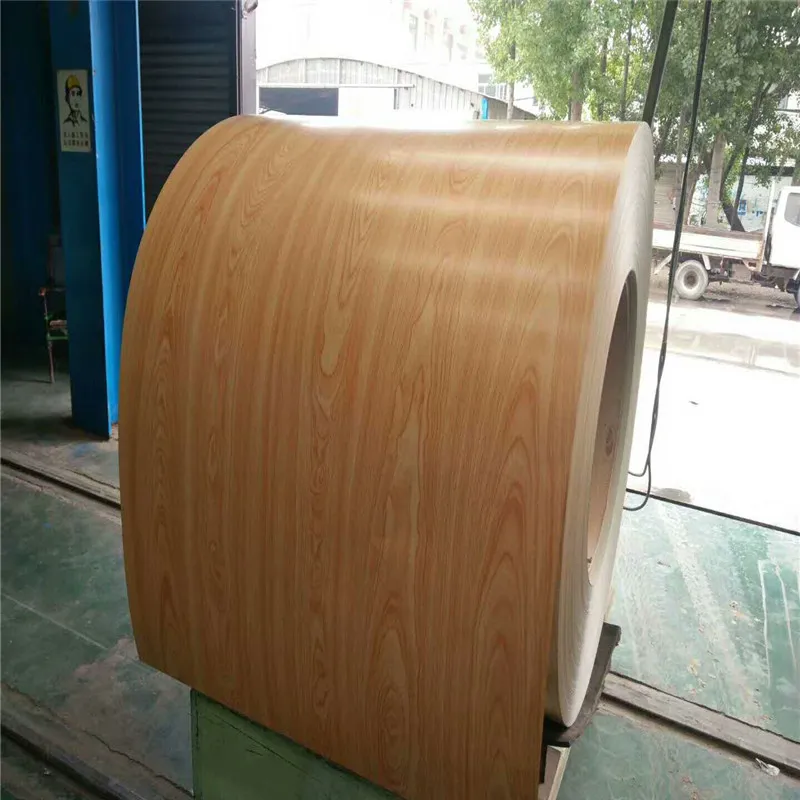

1. Special Pattern Coated Steel Sheet Coil descriptionIt qualified with excellent decorative, formability, corrosion
resistance, coating adhesion, can keep
for a long time as well as maintain fresh color. For printed steel
coil can obtain good economic
benefit by steel belt wood, efficient in construction and save
energy, prevent pollution etc
2. Special Pattern Coated Steel Sheet Coil flexibility1) Coating systems or configurations maybe customized to suit
client's requirements
2) Top Coat can be 2-coat or 3-coat system (primer + base coat +
finishing coat)
3) Backing can be single service coat or primer + backer coat
4) Both sides can also be colour coated
5) Protection Film services provided
6) Color matching services provided at no additional charges
3.Special Pattern Coated Steel Sheet Coil applications1) Buildings and constructions:roofing,ceilings,gutters,venting
lines,indoor decorations,window frames
2) Electrical appliances:computer shells,washing
machines,refrigerators,dehumidifiers,video recorders
3) Agricultural equipments: troughs, feeding tools, agricultural
driers, irrigation channels
4) Vehicle parts: back-seat plates of buses and trucks, conveying
systems, oil tanks
4. Special Pattern Coated Steel Sheet Coil processPay off reel-double cut shear-jonter-pre cleaning
section-dryer-entry accumulation-cleaning section
-chemical coater-chemical oven-primer coater-prime oven-prime
coater cooling unit-dryer-finish
coater-finish oven-finish coat cooling unit-dryer-tension
leveler-exit accumulator-exit shear-tension reel
5. Special Pattern Coated Steel Sheet Coil features1) Excellent corrosion resistance: The zinc layer provides a good
protection of sheet
2) High heat resistance: The reflective surface of the material
aids in efficiently reflecting the sunlight
away and in turn reducing the amount of heat transmitted
3) Aesthetics: Available in plethora of patterns and multiple sizes
as per requirements
4) Versatility: can be used in the various areas
Product Name | Pre-painted galvanized/galvalume steel coil |
Standard | EN10142, EN10346, EN10169, JIS3302, ASTMA755M, |
Grade | SGCC, CGCC, SGCH, DX51D+Z/DX53D+Z/S220GD-550GD |
Thickness | 0.15mm-1.2mm |
Width | Max1250mm |
Zn coating | Z30-Z200gsm |
AZ coating | AZ30-AZ200gsm |
Painting Thickness | Top side: 15-35microns; |
Back side: 7-25microns. |
Color | RAL NO. or customer's sample |
Painting type | PE, PVDF, HDP, SMP |
Coating structure | 2/1 or 2/2 coating |
Coil ID | 508mm/610mm |

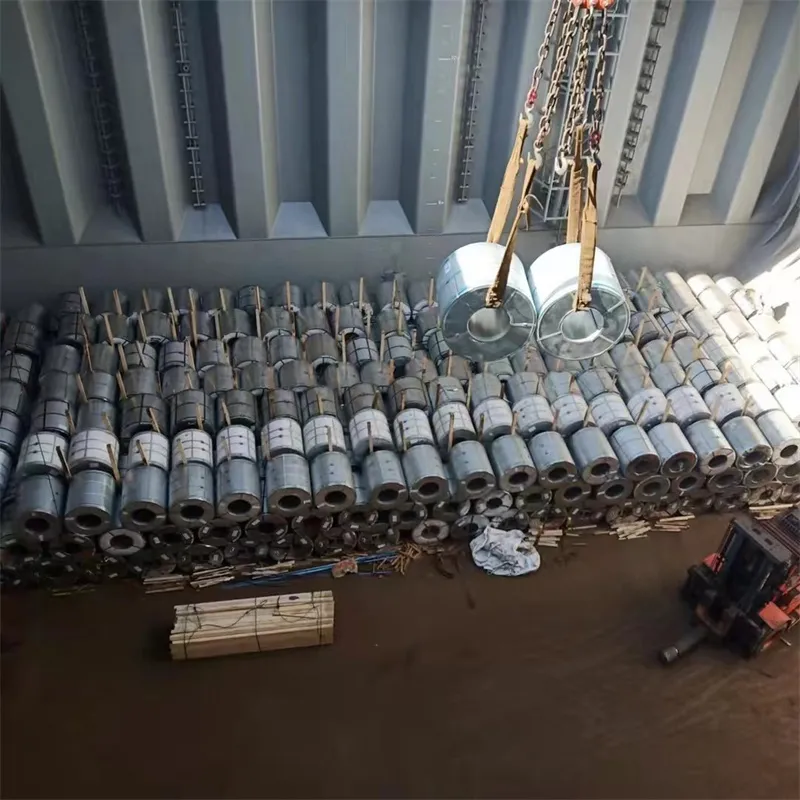

Packing | Seaworthy packaging with waterproof paper, steel foil and metal
strip material |
Application | roofing sheet, ceiling channel, industrial refrigeration, cold
storage, door panel, sandwich panel, writing board, PCM steel plate |
Delivery Time | 10-25 working days after the deposit |
Min Order | 5tons |
