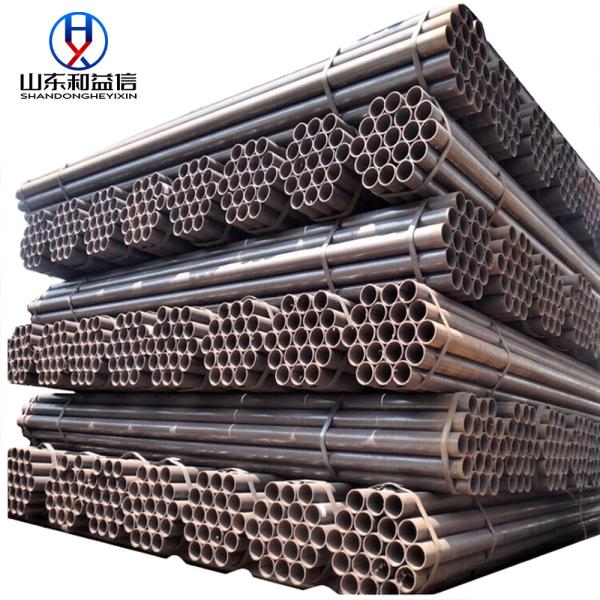

API Spec 5CT Hollow Seamless Carbon Steel Tubes Casing And Tubing Pipe Stc

Ask Lasest Price
Brand Name :	HYX
Model Number :	API SPEC 5CT
Certification :	CE
Price :	$550-$650
Payment Terms :	T/T,L/C
Supply Ability :	30000Tons/Month
Delivery Time :	7-15days

Add to Cart

Product Details
Company Profile

API Spec 5CT Hollow Seamless Carbon Steel Tubes Casing And Tubing Pipe Stc

Standards of seamless steel pipe

API SPEC 5CT
Product Name	Executive Standard	Dimension (mm)	Steel Code / Steel Grade
Casing	API 5CT	Ø114~219 x WT5.2~22.2	J55, K55, N80, L80, P110
Tubing	API 5CT	Ø48.3~114.3 x WT3.2~16	J55, K55, N80, L80, P110

Product name:API-5CT Seamless Casing
Material: 34CrMo4,H40,J55, K55, N80,L80,M65,C90,T95,P110,Q125
Standard: API 5CT Grade: J55 N80 P110
Outer Diameter: 219.08-762mm Thickness: 6.71 - 30 mm
Technique: Cold Drawn/Hot Rolled Application: Oil Pipe
Secondary Or Not:Non-secondary Place of Origin: China (Mainland)
Certification: API Section Shape: Round
Surface Treatment:Black,varnish Special Pipe: API Pipe
Alloy Or Not: Is Alloy and Carbon Steel

Packaging & Delivery
Packaging Details: Seaworthy, Steel Shelf, Iron Pallet or as per customer's requirement
Delivery Times:20-55 days

API Spec 5CT Hollow Seamless Carbon Steel Tubes Casing And Tubing Pipe Stc

Chemical compositions of casing pipe

Standard	Grade	Chemical compositions(%)
API SPEC 5CT	J55	C	Si	Mn	P	S	Cr	Ni	Cu	Mo	V
	K55	0.34~0.39	0.20~0.35	1.25~1.50	≤0.020	≤0.015	≤0.15	≤0.20	≤0.20	/	/
	N80	0.34~0.38	0.20~0.35	1.45~1.70	≤0.020	≤0.015	≤0.15	/	/	/	0.11~0.16
	Q125	≤0.35	-------------	≤1.35	≤0.020	≤0.010	≤1.50	≤0.20	≤0.20	/	/
	P110	0.26~0.395	0.17~0.37	0.40~0.70	≤0.020	≤0.010	0.80~1.10	≤0.20	≤0.20	0.15~0.25	≤0.08

Mechanical properties of casing pipe

Grade	Type	Total elongation under load (%)	Yield strength (min)Mpa	Yield strength (max)Mpa	Tensile strength min Mpa	Hardness Max (HRC)	Hardness Max (HBW)
J55	-	0.5	379	552	517	-	-
K55	-	0.5	379	552	655	-	-
N80	1	0.5	552	758	689	-	-
N80	Q	0.5	552	758	689	-	-
L80	1	0.5	552	655	655	23	241
L80	9Cr	0.5	552	655	655	23	241
L80	13Cr	0.5	552	655	655	23	241
C90	-	0.5	621	724	689	25.4	255
C95	-	0.5	655	758	724	-	-
T95	-	0.5	655	758	724	25.4	255
P110	-	0.6	758	965	862	-	-
Q125	All	0.65	862	1034	931	-	-

Casing Pipe Manufacturing Process:

Steel ingot heating → hydraulic punching → reheating → extension → periodic rolling → reheating → sizing → cooling → straightening → pipe cutting → inspection

1. An annular heating furnace is required for ingot heating;
2. Punching and reheating with hydraulic press;
3. The oil casing plant uses a two-roller guide plate extension machine for extension;
4. Re-use a disc heating furnace for periodic rolling, and use a non-entry furnace for reheating, cooling, straightening, pipe cutting, and inspection.
API Spec 5CT Hollow Seamless Carbon Steel Tubes Casing And Tubing Pipe Stc

FAQ

1. How can I get a quotation from you?

You can leave us message, and we will reply every message in time. Or we may talk on line by Trademanager. And you can also find our contact information on contact page.

2. Can I get samples before order?

Yes, of course.Usually our samples are free. we can produce by your samples or technical drawings. We can build the molds and fixtures.

3. What is your delivery time ?

The time of delivery is usually around 1 month(1*40FT as usual).We can send out in 2 days, if it has stock.

4.What is your payment terms?

Our usual payment term is 30% deposite, and rest against B/L. L/C is also acceptatble. Exw,FOB, CFR, CIF, DDU.

5. How can you garantee what I got will be good ?

We are factory with 100% predelivery inspection which garantee the quality.And as golden supplier on . assurance will make garantee, which means will pay your money back in advance if there is any problem with the products.

6. How do you make our business long-term and good relationship?

1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them?
