    Flat Hot Rolled Carbon Steel Sheet ASTM A36 5/8''

    Ask Lasest Price
    Brand Name : HYX
    Model Number : ASTM A36 5/8''
    Certification : CE, Bis, SABS, Ks, JIS, GS, ISO9001
    Price : USD 460-600
    Payment Terms : T/T,L/C
    Supply Ability : 30000Tons/Month
    Delivery Time : 7-15days
    • Product Details
    • Company Profile

    Flat Hot Rolled Carbon Steel Sheet ASTM A36 5/8''

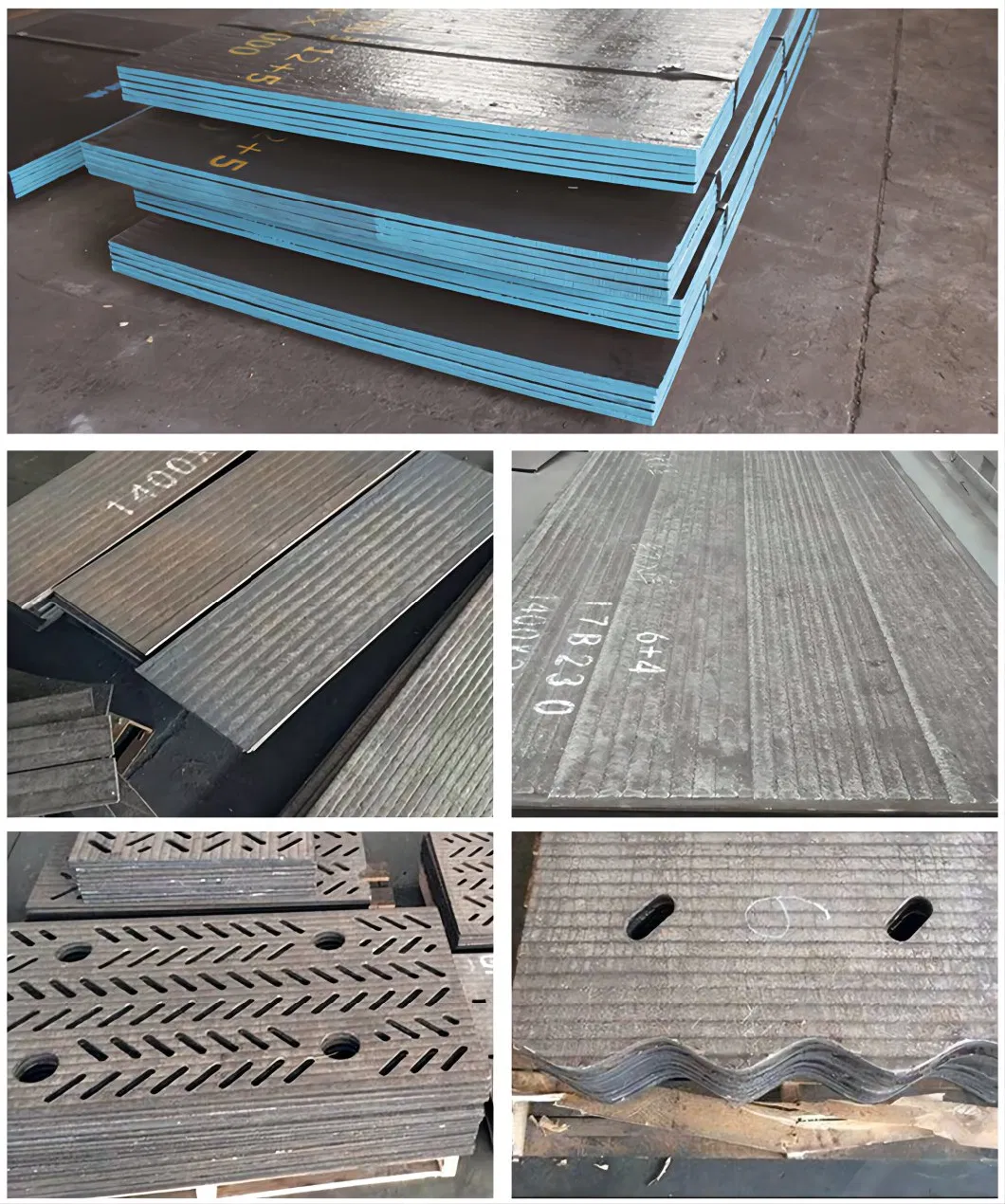

    Product Description
    MaterialQ235/Q345B+Chromium carbide overlay alloy
    Hardness

    HRC 52-62

    Wear deposite 3mm: HRC 52-58, 4mm: HRC 56-60 ,5mm: HRC 58-62,

    6mm: HRC 58-62, 8mm: HRC 58-62, 10mm: HRC 60-62, 12mm: HRC 60-63

    /650~840 HV
    1st layer :52-58 HRC, 2nd layer: 58-62 HRC, 3rd layer : 62 HRC
    Chemical compositionC: 3.0-5.0 % Cr: 25-40 %
    MicrostructureChromium carbide hard particles volume fraction above 50 %
    The maximum hardness of chromium carbide is HV 1800
    Wear resistanceASTM G65 methode A: 0.08~0.18 g according to different alloy, and the wear resistance of CCO plate is 30 times higher than low carbon stell and 12 times than heat treated steel
    Impact resistancewithstand medium impact and moderate impact
    Heat resistancewithstand temperatures up to 600 ºC, customized high temperature resistance wear plates according to customer's requirements which can withstand maximum terperatures up to 900 ºC
    Flateness tolerance± 3 mm/m
    Thickness toleranceUniform overlay thickness, with tolerance within 0~0.5 mm
    Standard sizeOpen arc welding: 1.4x3.4; 1.5x3.0; 2.0x3.0 meter, customized
    Submerged arc welding: 1400*3000 mm, 1400*3500 mm, 2100*3500 mm, customized
    Main thickness3+3,4+4,5+5
    6+4,6+5,6+6,6+8
    8+4,8+5,8+6,8+7,8+8
    10+4,10+5,10+6,10+7,10+8,10+9,10+10,10+20
    12+4,12+5,12+6,12+7,12+8,12+10,12+11,12+12,12+18,12+20
    14+6,14+8,14+10
    16+6,16+8,16+10
    18+6,18+8,18+10
    20+5,20+6,20+8,20+10,30+10,40+10,20+20,20+25

    We can customize the plates in different sizes and thicknesses based on customer's drawings
