EN 10025-2 S355JR S355JO S355J2 Hot Rolled Structural H Steel Beam

Shandong Heyixin Metal Materials Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap EN 10025-2 S355JR S355JO S355J2 Hot Rolled Structural H Steel Beam from wholesalers

    Buy cheap EN 10025-2 S355JR S355JO S355J2 Hot Rolled Structural H Steel Beam from wholesalers
    • Buy cheap EN 10025-2 S355JR S355JO S355J2 Hot Rolled Structural H Steel Beam from wholesalers
    • Buy cheap EN 10025-2 S355JR S355JO S355J2 Hot Rolled Structural H Steel Beam from wholesalers
    • Buy cheap EN 10025-2 S355JR S355JO S355J2 Hot Rolled Structural H Steel Beam from wholesalers

    EN 10025-2 S355JR S355JO S355J2 Hot Rolled Structural H Steel Beam

    Ask Lasest Price
    Brand Name : HYX
    Model Number : EN 10025-2 S355JR S355JO S355J2
    Certification : CE
    Price : 399$-699$
    Payment Terms : T/T,L/C
    Supply Ability : 30000Tons/Month
    Delivery Time : 7-15days
    • Product Details
    • Company Profile

    EN 10025-2 S355JR S355JO S355J2 Hot Rolled Structural H Steel Beam

    Product Description

    Product Description

    EN 10025-2 S355JR S355JO S355J2 Hot Rolled Structural H Steel Beam
    Carbon Steel I Beam/ H Beam

    Material Q235A,Q275A,Q295A,SS400,A36,S235JR,S235j0,S235j2S235JR,S235j0,S235j2
    S275Jr,s275j0,s275j2,s275n,S275NL,SM400A,St37,SA283GrA,Q345A,Q355B,Q390A,Q420A,
    S355JR,S355JO,S355J2,S355J2W,S355K2,S355N,S355NL,StE355, StE460,St52,S420N,S460M,S420ML/S460ML,S460N,S460NL,A572Gr50,A572Gr65,A709Gr50,A633 (C/D/E),
    SM490B,SM490YB,SM520, SM570,10-50#,20Mn,50Mn,1025,10#,etc
    H*B 100*100-900*300mm
    T1 4.5-21mm
    T2 7-35mm
    Technique Hot Rolled,Clod rolled
    Application workshop, warehouse, plant,Steel web frame structure,Steel H-column and steel H-beam,Portal frame products, High rise building project
    Packaging Details Bundled with firm steel straps, easy for loading
    Delivery Time 10 days after deposit
    Payment Terms T/T
    Supply Ability 50000 Metric Ton/Metric Tons per Month

    EN 10025-2 S355JR S355JO S355J2 Hot Rolled Structural H Steel Beam

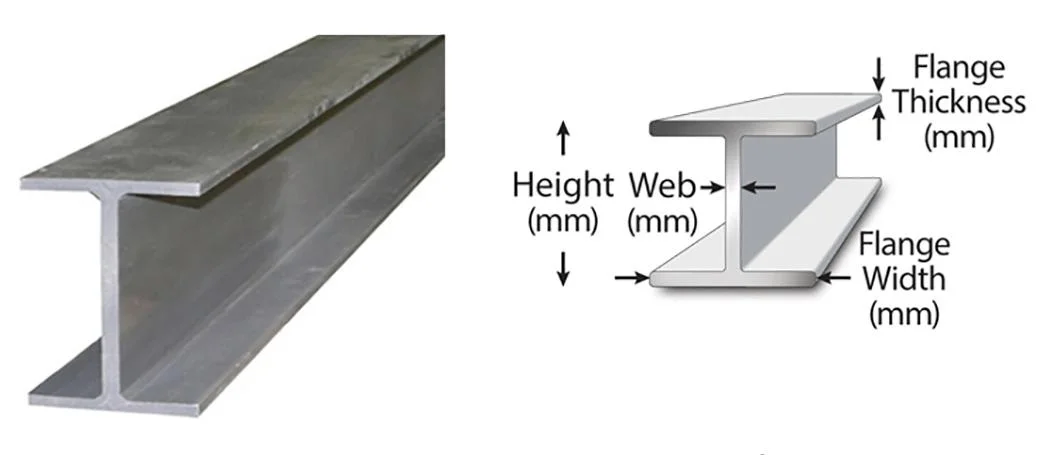

    Theoretical weight table of welded H-beam specification(KG/M)
    Category Type H×B(mm) t1(mm) t2(mm) Theoretical weight
    HW 200×200 200×200 8 12 50.5
    200×204 12 12 56.7
    250×250 250×250 9 14 72.4
    250×255 14 14 82.2
    300×300 294×302 12 12 85
    300×300 10 15 94.5
    300×305 15 15 106
    350×350 344×348 10 16 115
    350×350 12 19 137
    400×400 388×402 15 15 141
    394x398 11 18 147
    400×400 13 21 172
    400×408 21 21 197
    414x405 18 28 233
    428×407 20 35 284
    458×417 30 50 415
    498×342 45 70 605
    HM 150x100 148×100 6 9 21.4
    200×150 194×150 6 9 31.2
    250×175 244×175 7 11 44.1
    300x200 294x200 8 12 57.3
    350×250 340×250 9 14 79.7
    400×300 390×300 1o 16 107
    450×300 440×300 11 18 124
    500×300 482x300 11 15 115
    488×300 11 18 129
    600×300 582×300 12 17 137
    588×300 12 20 151
    594x302 14 23 175
    HN 100×50 100×50 5 7 9.54
    125×60 125×60 6 8 13.3
    150×75 150×75 5 7 14.3
    175x90 175x90 5 8 18.2
    200×100 198x99 4.5 7 18.5
    200x100 5.5 8 21.7
    250x125 248×124 5 8 25.8
    250x125 6 9 29.7
    300x150 298×149 5.5 8 32.6
    300×150 6.5 9 37.3
    350×175 346×174 6 9 41.8
    350×175 7 11 50
    400x150 400×150 8 13 55.8
    400×200 396×199 7 11 56.7
    400×200 8 13 66
    450x150 450×150 s 14 65.5
    450×200 446x199 8 12 66.7
    450×200 9 14 76.5
    500x150 500×150 10 16 77.1
    500x200 496×199 9 14 79.5
    500×200 10 16 89.6
    506×201 11 19 103
    600×200 596×199 10 15 95.1
    600×200 11 17 106
    606×201 12 20 120
    700×300 692x300 13 20 166
    700×300 13 24 185
    800x300 792×300 14 22 191
    800×300 14 26 210
    900x300 890×299 15 23 213
    900x300 16 28 243
    912x302 18 34 286
    Detailed Photos
    EN 10025-2 S355JR S355JO S355J2 Hot Rolled Structural H Steel Beam
    EN 10025-2 S355JR S355JO S355J2 Hot Rolled Structural H Steel Beam
    EN 10025-2 S355JR S355JO S355J2 Hot Rolled Structural H Steel Beam
    EN 10025-2 S355JR S355JO S355J2 Hot Rolled Structural H Steel Beam
