PPGI is a galvanized color-coated steel material. The coated steel
sheet is subjected to surface chemical treatment, and then coating
is applied and then baked. It has the mechanical strength and easy
formability of steel plates, as well as the good decorative
properties and corrosion resistance of organic materials. The
coating has strong adhesion and can keep the color fresh for a long
time. PPGI is widely used in various fields such as construction,
home appliances, furniture, public facilities and transportation.
Product Parameters
| Product Name | Color Coated Galvanized Roof Sheet PPGI |
| Thickness | 0.2mm-0.8mm |
| Width | 750mm-1500mm |
| Length | 600mm-1250mm (Common Width: 914mm, 1000mm, 1200mm, 1220mm, etc.) |
| Color | According RAL Color Card (Can provide custom pattern) |
| Shape | Wavy, Trapezoidal, etc. |
| Paint | PE, SMP, HDP, PVDF |
| Primer | Epoxy primer, Polyester primer, Water soluble acrylic primer,
Polyurethane primer |
| Coating Thickness | Top: 11-35μm, Back: 5-14μm |
Color Selection
We provide many colors to choose from, the following are common
colors, if you like other colors or patterns, please send us the
RAL color code.

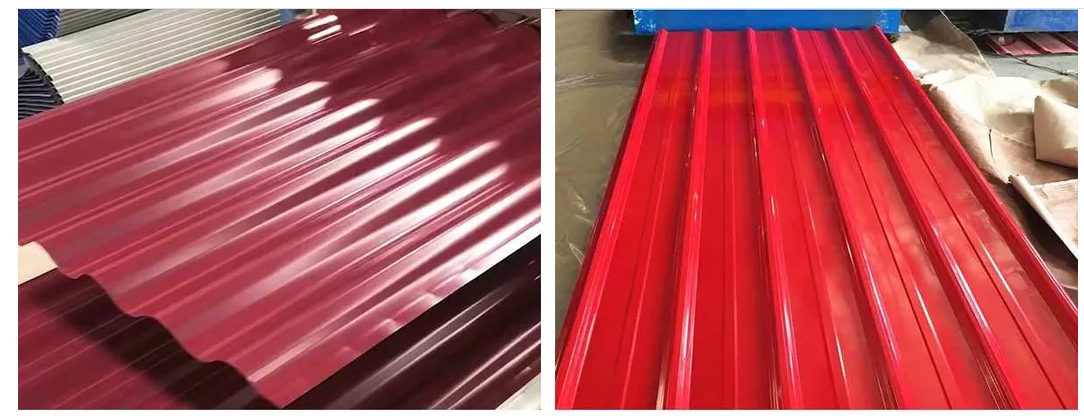

Galvanized color coated roof panels are widely used in commercial,
agricultural, industrial and civil buildings. This is because it
has many benefits, such:
Long Service Life
The color coated GI roof panel adopts galvanized steel sheet as the
base material, which is durable. Several coatings are then applied
to enhance its corrosion resistance. Therefore, the service life of
PPGI roofing panels will exceed 15 years.
Noise Reduction And Heat Insulation
The profile design of the color galvanized roof can reduce the
sound resonance and isolate the noise. In addition, due to its low
thermal conductivity, it can help you keep your home cool on hot,
sunny days.
Low Installation Cost
PPGI roof panels are lightweight and easy to transport and install.
The use of color coated roof panels can shorten the construction
period by 40%. In addition, the colored galvanized roof can be
recycled, especially for mobile homes. It can reduce your
construction costs.
Beautiful Appearance
Galvanized color coated roof panels are rich in color and unique in
design, and can be used in a variety of styles. In addition, the
painted roof looks great, which means that no surface decoration is
required.
Good Drainage Performance
Galvanized color coated roof panel has waterproof function. In
rainy areas, the corrugated design can help rainwater gather and
run down quickly.
Excellent Safety Performance
PPGI plate retains the mechanical properties of the base metal,
such as high tensile strength, great toughness and so on. Not only
that, when made into a corrugated roof, it can bear more weight.
Scope of Application
Agricultural Applications: Including but not limited to
greenhouses, chicken coops, stables, hay barns and barns
Residential Applications: Including residential houses, simple
houses, apartments, towers, garages, storage sheds, etc.
Commercial Applications: For example, factories, warehouses,
manufacturing plants, department stores, office buildings, etc.
Public Buildings: Such as cinemas, exhibition halls, gymnasiums,
terminal buildings, schools, hospitals, etc.
